IXGH20N120A3

From IGBTModel.org
Jump to: navigation, search

Download

IXGH20N120A3

Tests performed

Static

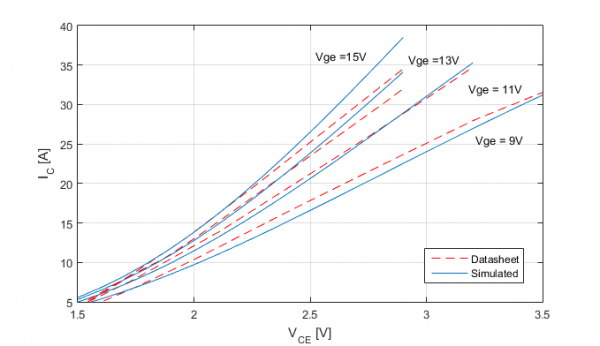

Fig. 1 reports the comparison between the datasheet information and the simulated static output characteristics. It shows the IGBT output characteristics at 25ºC for the following gate voltages: VGE=9V, 11V, 13V and 15V.

Fig. 1. Static response.
