FS3L50R07W2H3F

From IGBTModel.org
Jump to: navigation, search

Download

FS3L50R07W2H3F

Tests performed

Static

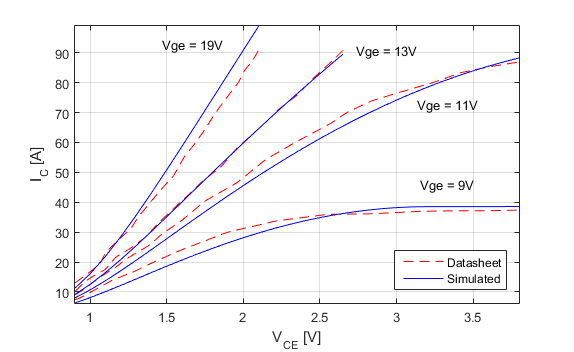

Fig. 1 reports the comparison between the datasheet information and the simulated static output characteristics. It shows the IGBT output characteristics at 150ºC for the following gate voltages: VGE=9V, 11V, 13V and 19V.

Fig. 1. Static response.
