FS300R17KE3

From IGBTModel.org
Jump to: navigation, search

Download

FS300R17KE3

Tests performed

Static

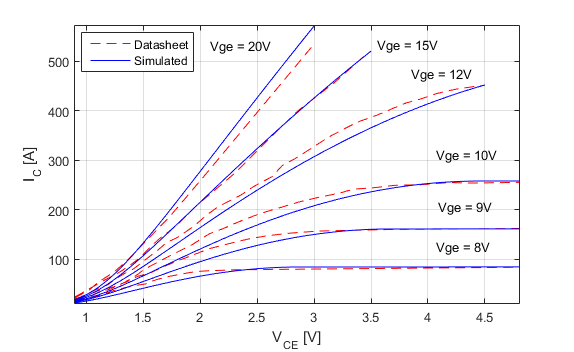

Fig. 1 reports the comparison between the datasheet information and the simulated static output characteristics. It shows the IGBT output characteristics at 125ºC for the following gate voltages: VGE=8V, 9V, 10V, 12V, 15V and 20V.

Fig. 1. Static response.
