FF200R12MT4

Tests performed

Static

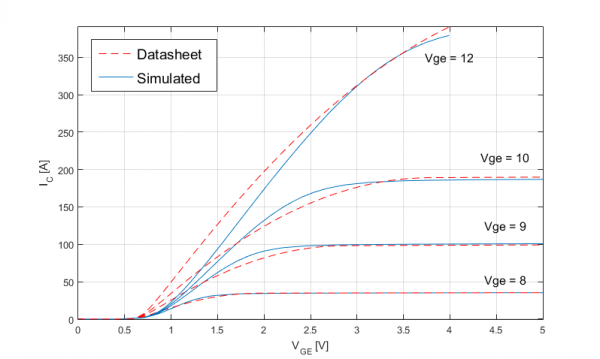

Fig. 1 reports the comparison between the experimental information and the simulated static output characteristics. It shows the IGBT output characteristics at 25ºC for the following gate voltages: VGE=8V, 9V, 10V and 12V.

Fig. 1. Static response.
